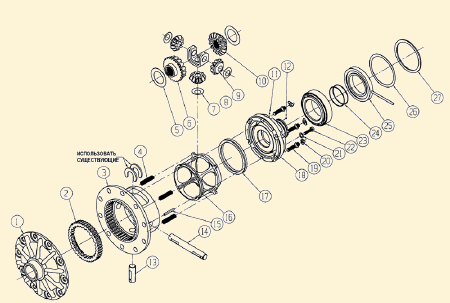

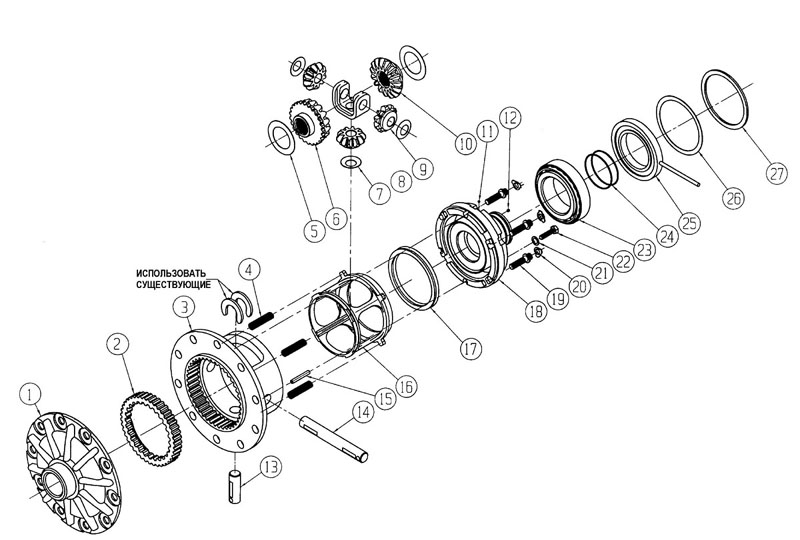

Номер на рисунке |
Количество |
Наименование |
Номер детали |
01 |
1 |
Flange Cap |
021901 |
02 |
|
Clutch Gear |
050501 |
03 |
1 |
Differential Case |
012005 |
04 |
4 |
Piston Spring |
150102 |
05 |
2 |
Side Gear Thrust Washer |
151005 |
06 |
1 |
Splined Side Gear |
131004 |
07 |
3 |
Pinion Thrust Washer |
151107 |
08 |
1 |
Centre Spider Block |
070602 |
09 |
3 |
Pinion |
140502 |
10 |
1 |
Side Gear |
130904 |
11 |
1 |
Steel Ball 2.5mm |
160401 |
12 |
1 |
Cylinder Cap Grub Screw |
200301 |
13 |
1 |
Short Cross Shaft |
061201 |
14 |
1 |
Long Cross Shaft |
061101 |
15 |
1 |
Cross Shaft Retaining Pin |
120402 |
|
1 |
Cross Shaft Retaining Pin |
120401 |
16 |
1 |
Piston |
040601 |
17 |
1 |
U Ring |
160303 |
18 |
1 |
Cylinder Cap |
030904 |
19 |
8 |
Cylinder Cap Retaining Bolt |
200207 |
20 |
8 |
Tab Washer M6 |
150402 |
21 |
1 |
Retaining Screw Washer |
4581059 |
22 |
1 |
Pin Retaining Screw |
200208 |
23 |
1 |
Tapered Roller Bearing |
160105 |
24 |
2 |
Seal Housing 0 Ring |
160210 |
25 |
1 |
Seal Housing |
080603 |
26 |
2 |
Shim 0.030" (0.76mm) |
150321 |
|
2 |
Shim 0.010" (0.25mm) |
150322 |
|
2 |
Shim 0.005" (0.13mm) |
150323 |
|
2 |
Shim 0.003" (0.08mm) |
150324 |
27 |
1 |
Master Shim |
150325 |
|
|
|
|
|
1 |
Bulkhead Fitting |
170102 |
|
1 |
5mm Push-In Fitting (RI 5 1/8") |
170201 |
|
1 |
Air Line (5mm Dia X 6m Long) |
170301 |
|
1 |
1/8" X 1/8" Nipple (Al 1/8" 1/8") |
170501 |
|
1 |
Solenoid Valve |
180103 |
|
1 |
On/Off Switch |
180205 |
|
1 |
Switch Cap Front |
180204 |
|
10 |
Cable Tie |
180301 |
|
1 |
Switch Bracket |
180504 |
|
3 |
Switch Bracket Screw |
6151176 |
|
1 |
Warning Label |
210101 |
|
1 |
Bumper Sticker |
210102 |
|
1 |
Fitting Instructions |
210269 |
|
1 |
Withdrawal Tool |
1201T |
